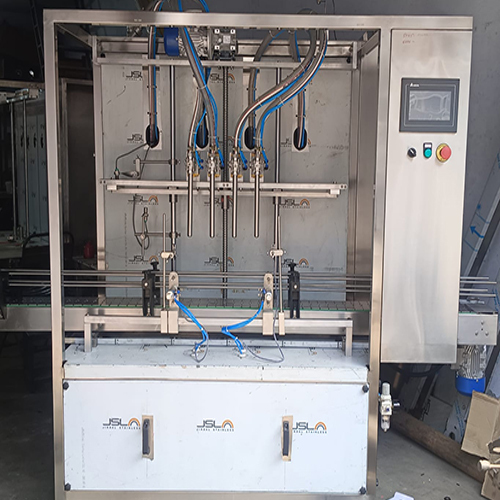

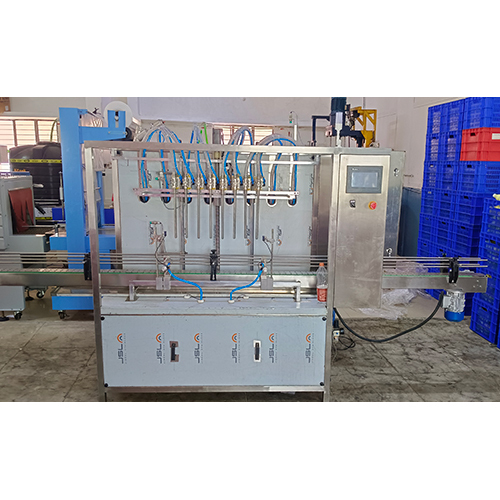

Automatic oil filling machine

उत्पाद वर्णन

The Automatic Oil Filling Machine is an advanced, high-performance solution designed to accurately and efficiently fill various types of oils into bottles or containers. This sophisticated machine automates the filling process, ensuring precise volume control and minimizing product wastage. Constructed with robust materials and incorporating state-of-the-art technology, the Automatic Oil Filling Machine is ideal for industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals. Its user-friendly interface and automated features streamline the filling process, enhancing productivity while maintaining high standards of quality and hygiene.

Technical Specifications:

• Filling Range: Suitable for filling volumes from 50 ml to 5 litres
• Filling Speed: Up to 100 bottles per minute (depending on bottle size and oil viscosity)
• Filling Accuracy: ±0.2%
• Nozzle Type: Drip-free nozzles to prevent spillage
• Number of Filling Heads: 2 to 12 (configurable based on production needs)
• Material of Construction: Stainless Steel 304/316
• Control System: PLC with HMI Touch Screen
• Power Supply: 220V/380V, 50/60Hz
• Air Consumption: 0.6-0.8 MPa
• Dimensions: 2500 mm (L) x 1500 mm (W) x 2200 mm (H)
• Weight: Approx. 800 kg
• Compatibility: Suitable for various container materials (PET, Glass, HDPE, Metal)
• Conveyor System: Adjustable speed conveyor with synchronized operation
