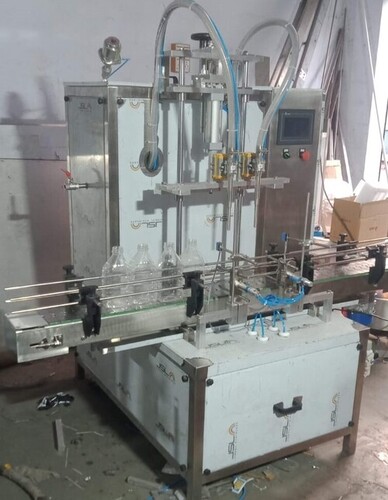

Automatic oil filling machine

Automatic oil filling machine Specification

Product Type
automatic

Application
Chemical, Food, Medical, Beverage

Packaging Material
Plastic, Glass

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
220 Volt (v)

Weight (kg)
550 Kilograms (kg)

Dimension (L*W*H)
2000 x 1200 x 1500 Millimeter (mm)

Feature
High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency, Stable Performance, Simple Control

Color
Silver

Warranty
1 years

Automatic oil filling machine Trade Information

Minimum Order Quantity
2 Units

FOB Port
Mundra

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
3 Units Per Month

Delivery Time
15 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Automatic oil filling machine

The Automatic Oil Filling Machine is an advanced, high-performance solution designed to accurately and efficiently fill various types of oils into bottles or containers. This sophisticated machine automates the filling process, ensuring precise volume control and minimizing product wastage. Constructed with robust materials and incorporating state-of-the-art technology, the Automatic Oil Filling Machine is ideal for industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals. Its user-friendly interface and automated features streamline the filling process, enhancing productivity while maintaining high standards of quality and hygiene.

Technical Specifications:

Filling Range: Suitable for filling volumes from 50 ml to 5 litres
Filling Speed: Up to 100 bottles per minute (depending on bottle size and oil viscosity)
Filling Accuracy: ±0.2%
Nozzle Type: Drip-free nozzles to prevent spillage
Number of Filling Heads: 2 to 12 (configurable based on production needs)
Material of Construction: Stainless Steel 304/316
Control System: PLC with HMI Touch Screen
Power Supply: 220V/380V, 50/60Hz
Air Consumption: 0.6-0.8 MPa
Dimensions: 2500 mm (L) x 1500 mm (W) x 2200 mm (H)
Weight: Approx. 800 kg
Compatibility: Suitable for various container materials (PET, Glass, HDPE, Metal)
Conveyor System: Adjustable speed conveyor with synchronized operation
